| Model | SMIT D4 | SMIT D2 |
| Capacity | 6 to 12 mm TMT (550D) | 6 to 10 mm TMT (550D) |
| SINGLE WIRE DOUBLE WIRE | 12 mm 6 TO 10mm | 10 mm 6 TO 8mm |
| Speed | 2800 Rings/Hour* | 2000 Rings/Hour* |
| Speciality | Infra Projects | Stirrup Resellers |
| Direction | Bi Directional | Single Directional |
| Motor Cap. | 38.75kw | 15.5kw |
| Pay Off | 2-2.5 Tonne (Air Brake type) | 1-1.5 Tonne (Regular type) |
| Weight | 3500 Kgs. | 2500 Kgs. |

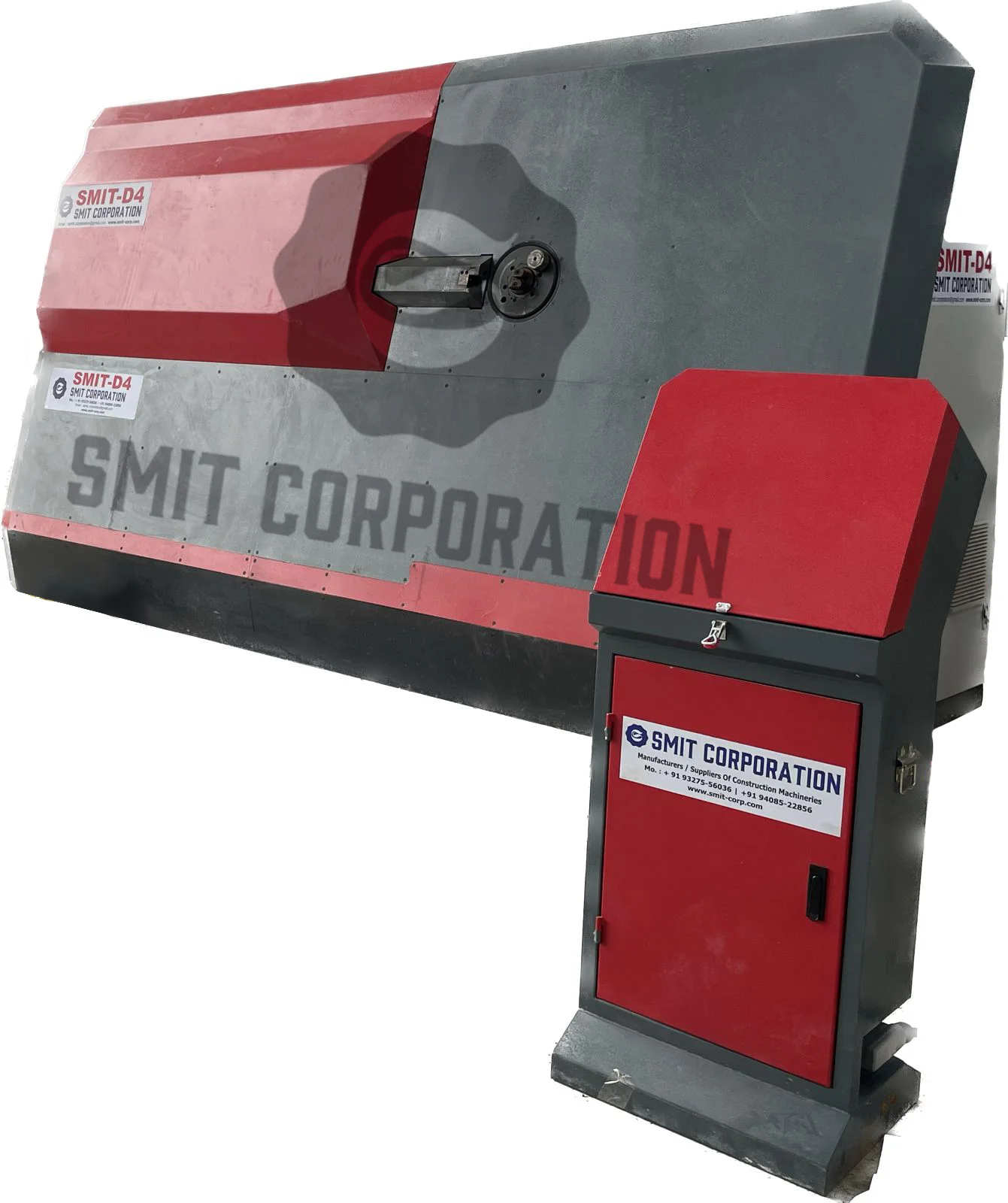

Fully Automatic CNC Stirrup Ring Making Machine
| Model | SMIT D4 | SMIT D2 |
| Capacity | 6 to 12 mm TMT (550D) | 6 to 10 mm TMT (550D) |
| SINGLE WIRE DOUBLE WIRE | 12 mm 6 TO 10mm | 10 mm 6 TO 8mm |
| Speed | 2800 Rings/Hour* | 2000 Rings/Hour* |
| Speciality | Infra Projects | Stirrup Resellers |
| Direction | Bi Directional | Single Directional |
| Motor Cap. | 38.75kw | 15.5kw |
| Pay Off | 2-2.5 Tonne (Air Brake type) | 1-1.5 Tonne (Regular type) |
| Weight | 3500 Kgs. | 2500 Kgs. |
| Capacity | 6 to 12 mm TMT (550D) |
|---|---|
| Speed | 2800 Rings/hr* |
| Speciality | Large Infra Projects |
| Direction | Bi Directional |
| Weight | 3500 Kgs |
